“The Ultimate In Plastic Caps & Plastic Plugs”

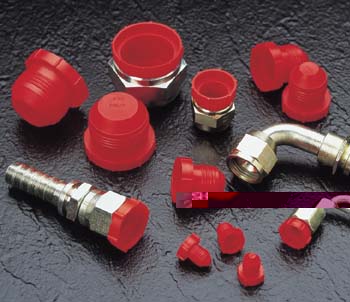

Flared Fitting Plugs

Part #	Thread Size	Tubing Size in Inches	JIC #	C Dimension	Carton Quantity
FP-3	7/16-20	1/4"	4	.515	6500
FP-4	1/2-20	5/16"	5	.515	6500
FP-5	6/16-18	3/8"	6	.500	4500
FP-7	3/4-16	1/2"	8	.750	3000
FP-8	7/8-14	5/8"	10	.855	1800
FP-9	1 1/16-12	3/4"	12	.860	1200
FP-12	1 5/16-12	1"	16	.915	1700
HF-24	1 5/8-12	1 1/4"	-------	.940	500
HF-28	1 7/8-12	1 1/2"	-------	1.060	500
HF-30	2 1/4-12	1 3/4"	-------	1.310	250
HF-32	2 1/2-12	2"	-------	1.310	250
