Tapered Plugs

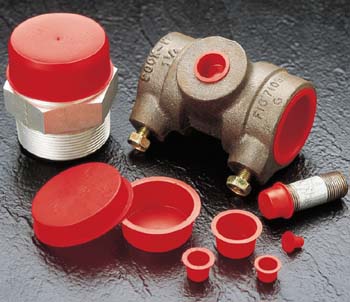

Tapered plugs for various uses: hese plugs come in red. Plug sizes range from very tiny to 4.5. They are used to plug holes in a variety of materials.
When capping please subtract .020 from the diameter being capped.
When plugging please add .020 to the diameter being plugged.

All dimensions are marked in inches.

Part # As a Cap
Dimension A		 As a Cap
Dimension B		 As a Plug
Dimension C		 As a Plug
Dimension D		 Part Depth
1 .058 .123 .114 .179 13/32
2 .083 .148 .139 .204 3/8
3 .114 .180 .170 .236 3/8
4 .130 .200 .186 .256 3/8
5 .150 .214 .206 .270 3/8
6 .177 .242 .233 .298 3/8
7 .208 .275 .264 .331 3/8
8 .238 .305 .294 .361 3/8
9 .268 .335 .324 .391 3/8
10 .300 .368 .356 .424 3/8
11 .328 .398 .384 .454 3/8
12 .358 .424 .418 .484 3/8
13 .388 .453 .444 .509 3/8
14 .412 .488 .472 .544 1/2
15 .438 .508 .494 .564 7/16
16 .470 .551 .526 .607 1/2
17 .490 .570 .546 .626 1/2
18 .522 .608 .585 .674 17/32
19 .551 .636 .607 .692 1/2
20 .576 .667 .632 .723 1/2
21 .616 .695 .672 .751 1/2
22 .630 .728 .686 .784 5/8
23 .665 .762 .725 .822 1/2
24 .690 .786 .750 .846 5/8
25 .740 .850 .800 .910 3/4
26 .755 .870 .815 .930 5/8
27 .805 .913 .865 .973 3/4
28 .834 .977 .894 1.037 5/8
29 .918 .987 .978 1.047 1/2
30 .904 1.028 .964 1.088 3/4
31 .935 1.083 .995 1.143 3/4
32 1.035 1.155 1.095 1.215 3/4
33 1.115 1.222 1.175 1.282 3/4
34 1.160 1.292 1.223 1.354 3/4
35 1.173 1.299 1.234 1.361 3/4
36 1.228 1.288 1.288 1.348 3/8
37 1.250 1.402 1.312 1.464 3/4
38 1.282 1.450 1.344 1.512 1
39 1.385 1.538 1.448 1.600 3/4
40 1.453 1.537 1.514 1.600 1/2
41 1.498 1.620 1.561 1.683 3/4
42 1.568 1.687 1.631 1.750 3/4
43 1.689 1.817 1.751 1.880 3/4
44 1.744 1.875 1.805 1.940 1
45 1.780 1.937 1.843 2.000 1
46 1.838 2.013 1.900 2.076 1
47 1.914 2.070 1.977 2.133 1
48 1.954 2.080 2.017 2.147 3/4
49 2.003 2.180 2.067 2.244 1
50 2.168 2.199 2.231 2.263 1/2
51 2.094 2.264 2.156 2.376 1
52 2.064 2.344 2.128 2.408 1
53 2.235 2.400 2.300 2.465 1
54 2.333 2.541 2.397 2.604 1
55 2.419 2.581 2.481 2.645 3/4
56 2.245 2.587 2.307 2.650 1
57 2.394 2.687 2.457 2.750 1
58 2.500 2.625 2.562 2.688 1
59 2.580 2.725 2.643 2.788 3/4
60 2.785 2.920 2.848 2.983 3/4
61 2.676 2.940 2.740 3.002 1
62 2.915 3.070 2.999 3.150 63 2.905 3.170 2.971 3.235 1
64 3.020 3.300 3.090 3.370 1
65 3.244 3.377 3.325 3.452 3/4
66 3.200 3.493 3.270 3.563 1
67 3.410 3.545 3.472 3.620 3/4
68 3.608 3.730 3.680 3.800 3/4
69 3.718 3.842 3.800 3.920 3/4
70 3.861 4.000 3.930 4.080 3/4
71 3.941 4.073 4.020 4.145 3/4
72 4.136 4.380 4.215 4.459 1
73 4.290 4.501 4.370 4.620 1

Please contact our customer service department for the specifications of the plastic caps and plastic plugs we carry.
We will be happy to Fax you the information.
